Turner Morris Reversible Plate Compactor 450KG Yanmar L100AE Diesel

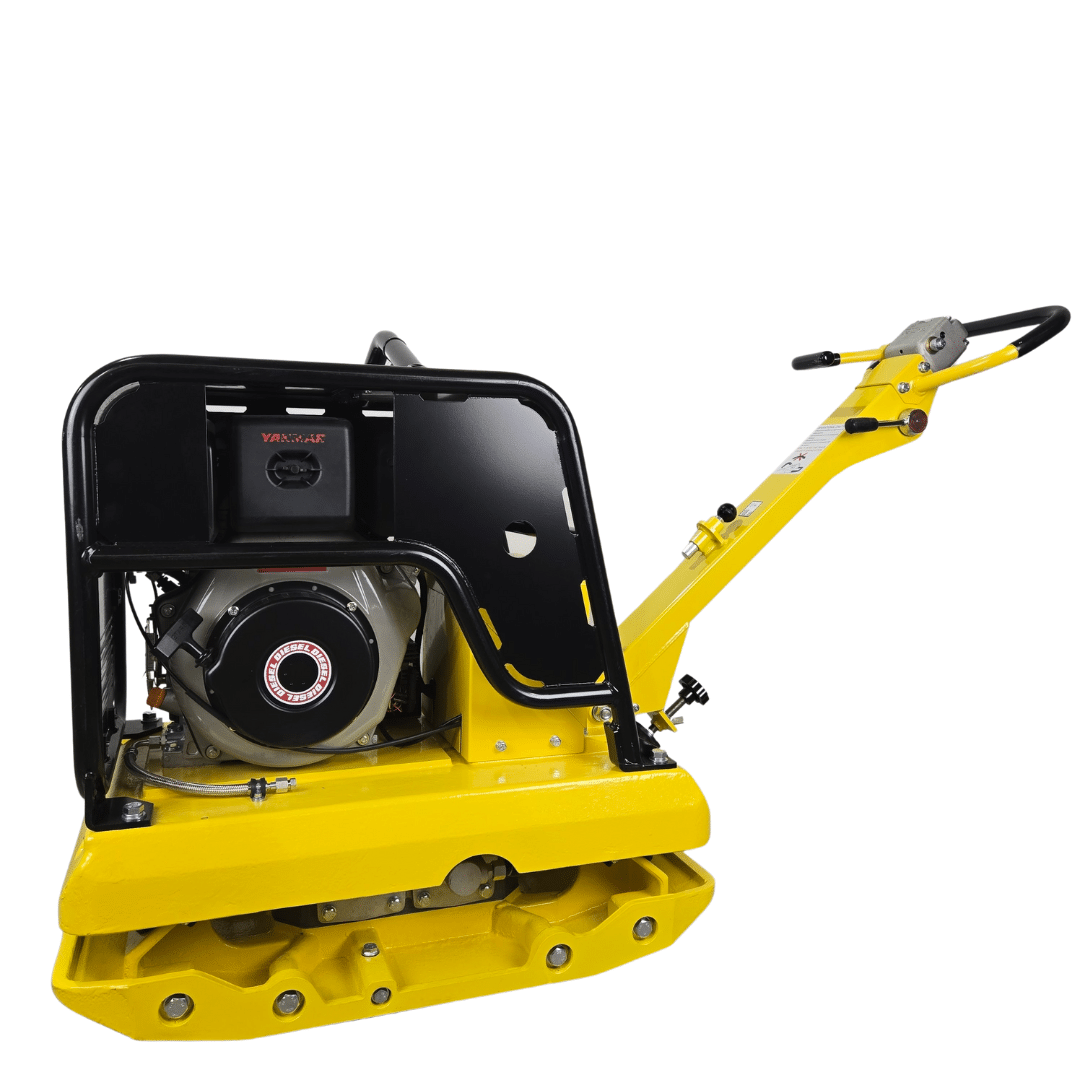

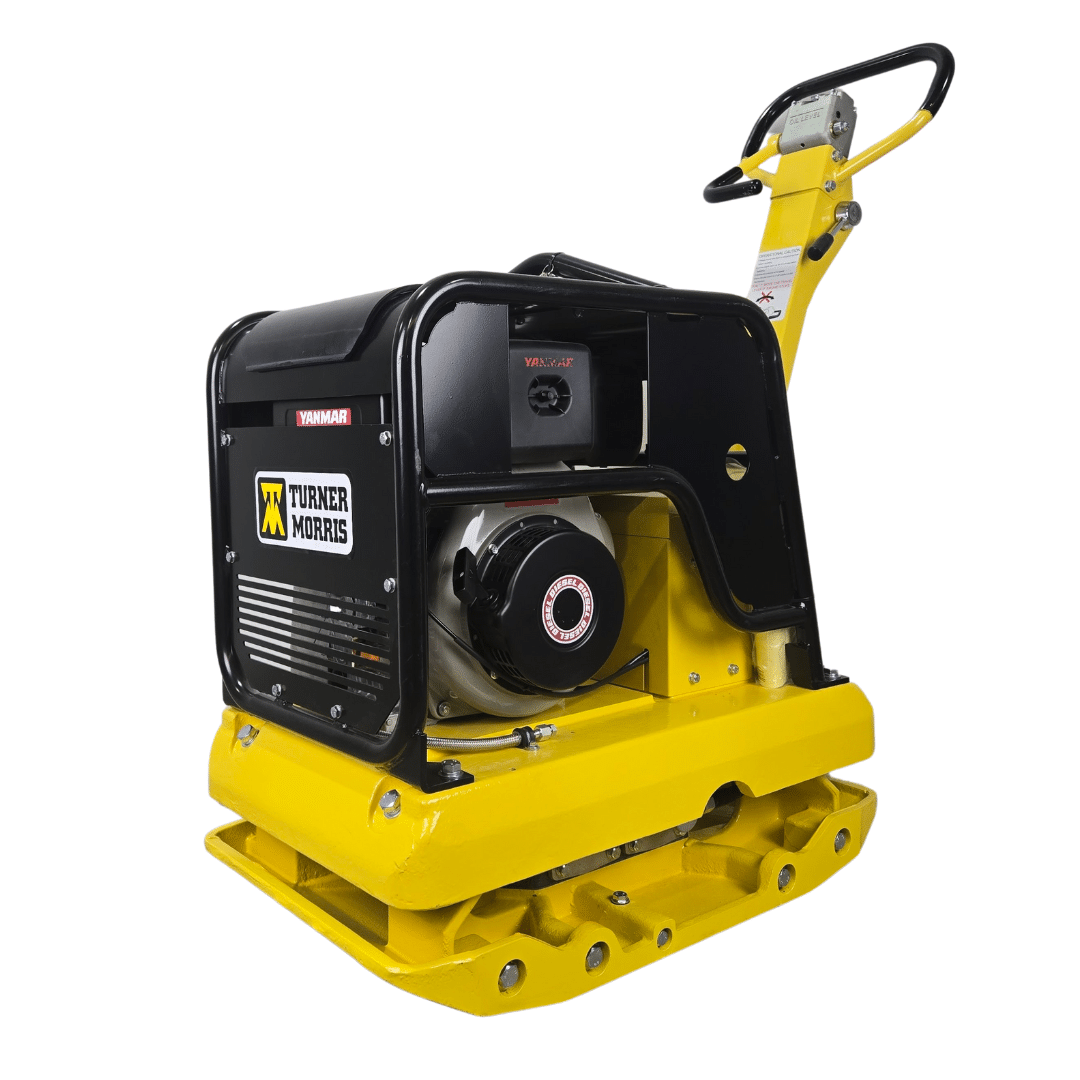

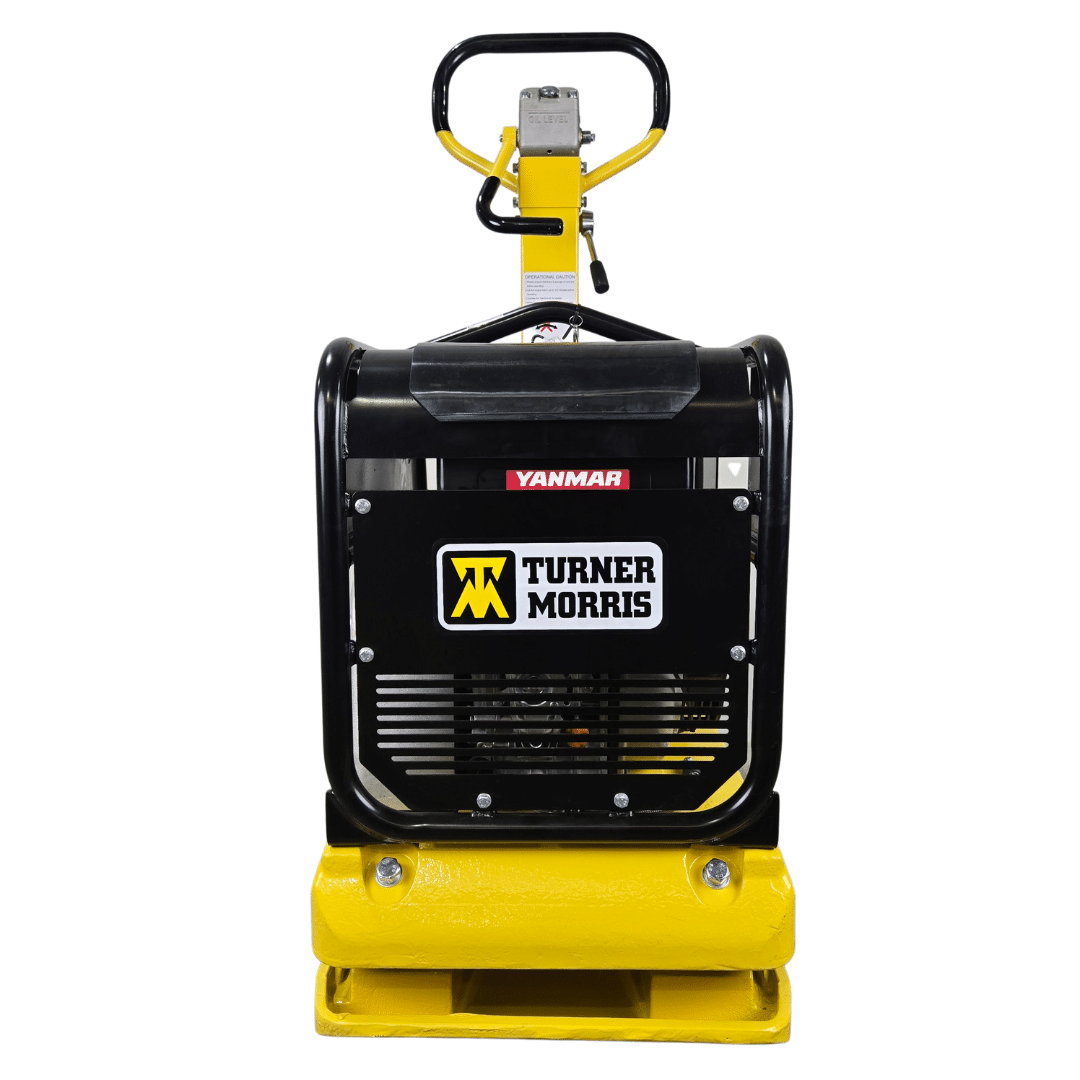

TMCPC405D Diesel Reversible Plate Compactor – Heavy-Duty Compaction for Large Areas

The TMCPC405D Diesel Reversible Plate Compactor is a large-sized compactor designed for superior compaction and high efficiency, making it ideal for large areas and patching applications. Powered by a Yanmar diesel engine, this compactor is built for demanding tasks, ensuring reliable performance and long-lasting durability. An optional 12 kg extension plate is available to enlarge the base, further enhancing compaction efficiency and coverage. The hydraulic direction mechanism allows the compactor to move forward, backward, and perform on-spot compaction, providing exceptional versatility in a wide range of conditions. The cast aluminum throttle lever is durable and ensures operator comfort during extended use. The closed-style frame provides robust protection for the engine, and the built-in hook allows for easy transportation between job sites.

To maximize the machine’s lifespan, the cast aluminum belt cover efficiently dissipates heat, extending the life of both the engine and clutch. It also protects the internal components from sand, soil, and dust. A high-quality shock absorber reduces vibrations, offering a more comfortable experience for the operator.

The diesel version of the TMCPC405D features an electric switch, simplifying the starting process and improving overall operational efficiency. The sealed battery design offers reliable protection, ensuring that the battery is well-maintained even in harsh working conditions. For more extensive compaction jobs, the optional extension plate increases the base size, boosting efficiency. Additionally, the rubber mat option allows the machine to be used for specialized brick compaction tasks.

Specifications:

Engine Type: Yanmar L100AE (Diesel)

Max. Power Output: 7.4 kW (10 ps)

Weight: 450 kg

Dimensions (L x W x H): 1610 x 500 x 930 mm

Plate Size (L x W): 900 x 500 mm

Vibration Frequency: 73 Hz (4400 vpm)

Centrifugal Force: 50 kN (5100 kgf)

Max. Traveling Speed (Depending on materials): 23 m/min

Limited Gradient: 30%

The TMCPC405D Diesel Reversible Plate Compactor delivers exceptional compaction performance for large-area jobs, making it the ideal choice for heavy-duty applications. Its diesel-powered engine, durable construction, and operator-friendly features make it an excellent solution for professionals seeking reliability and efficiency.
