Turner Morris Reversible Plate Compactor 160KG Yanmar L70N Diesel

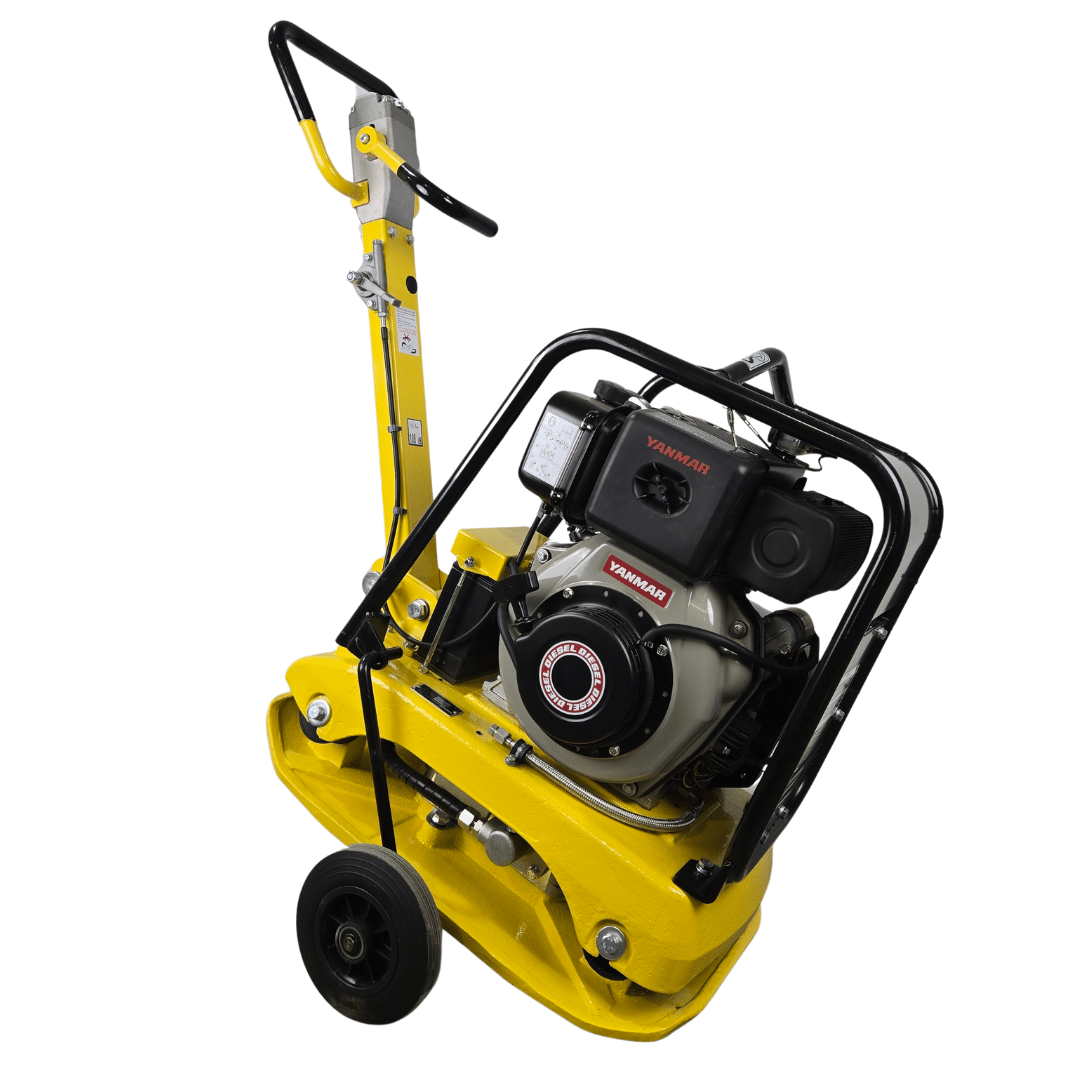

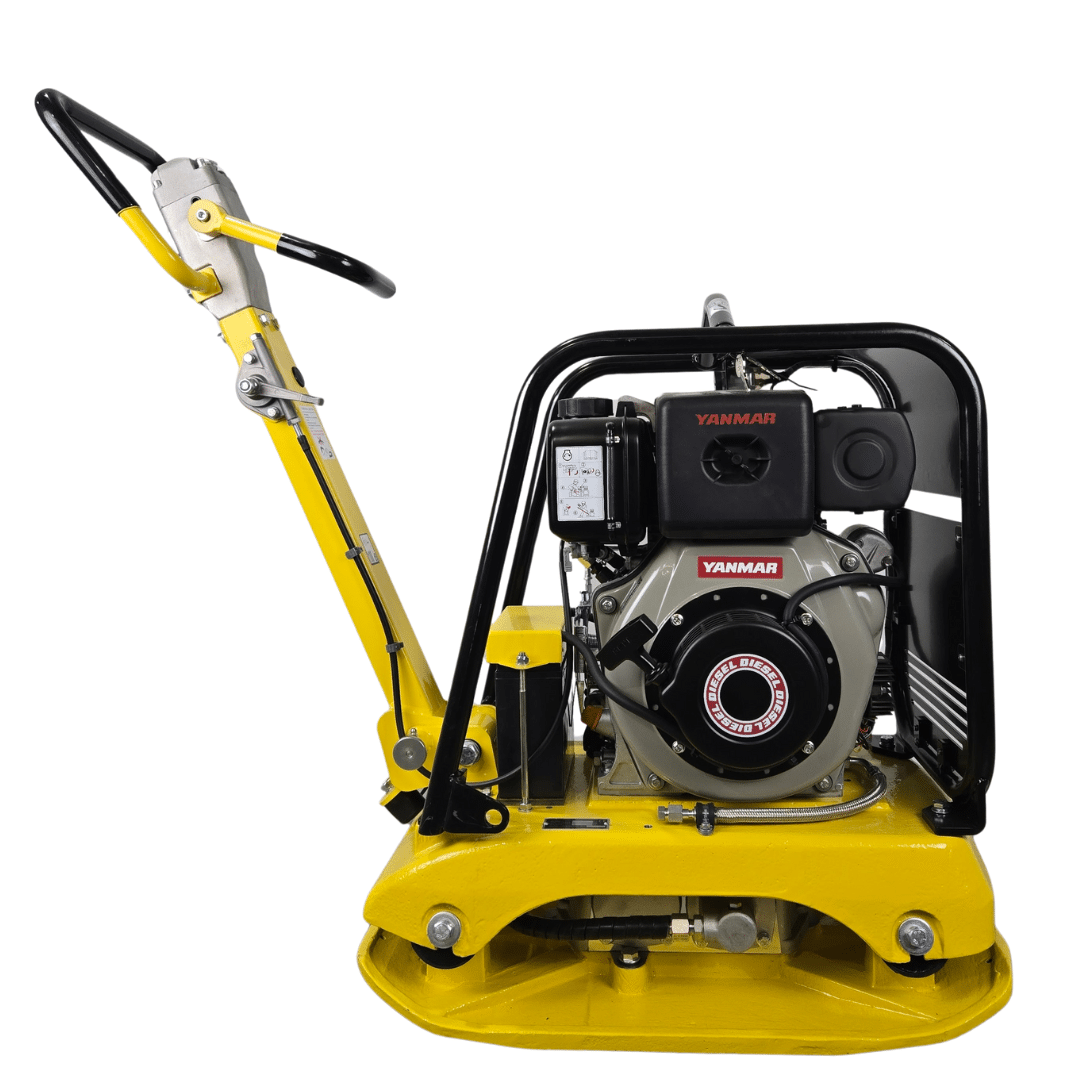

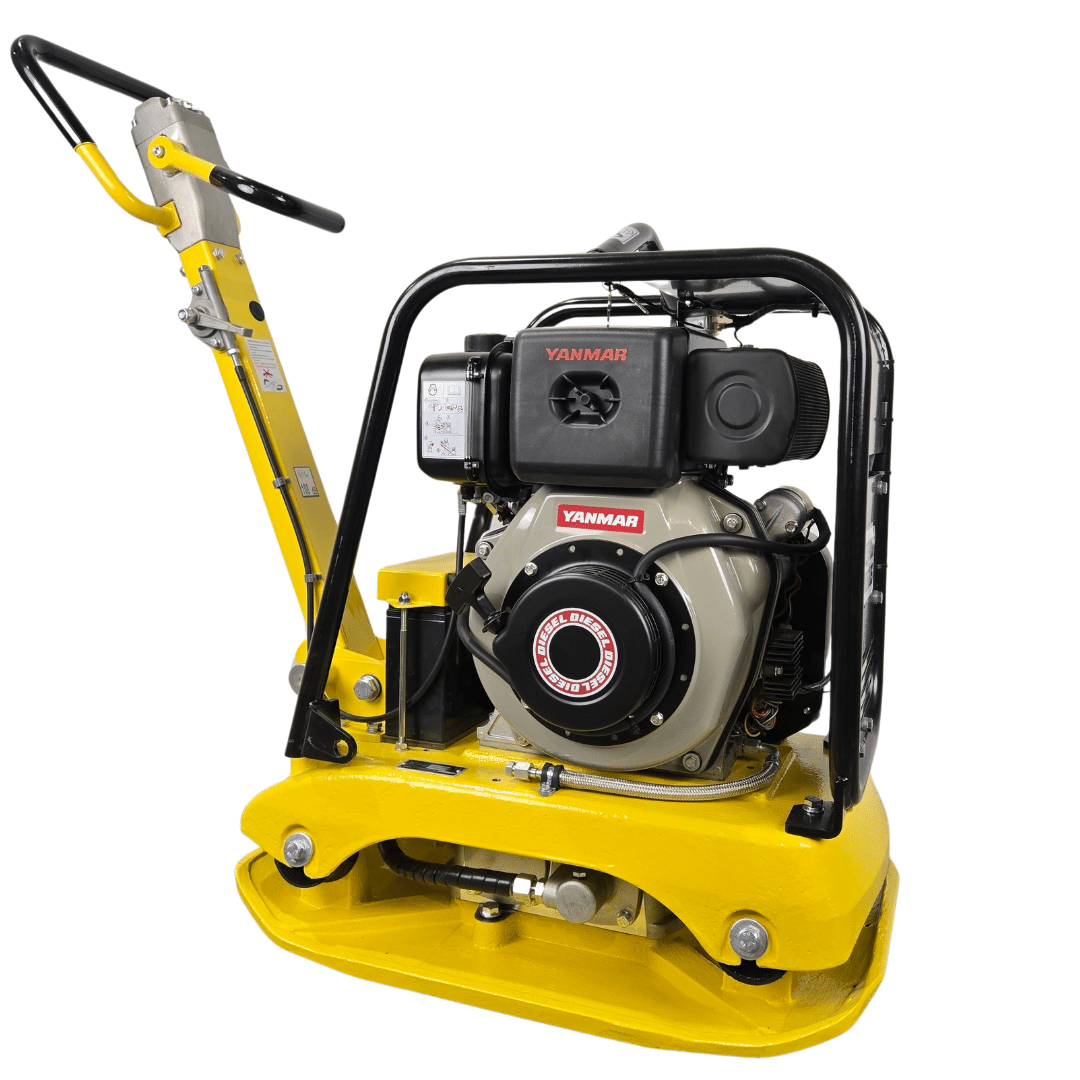

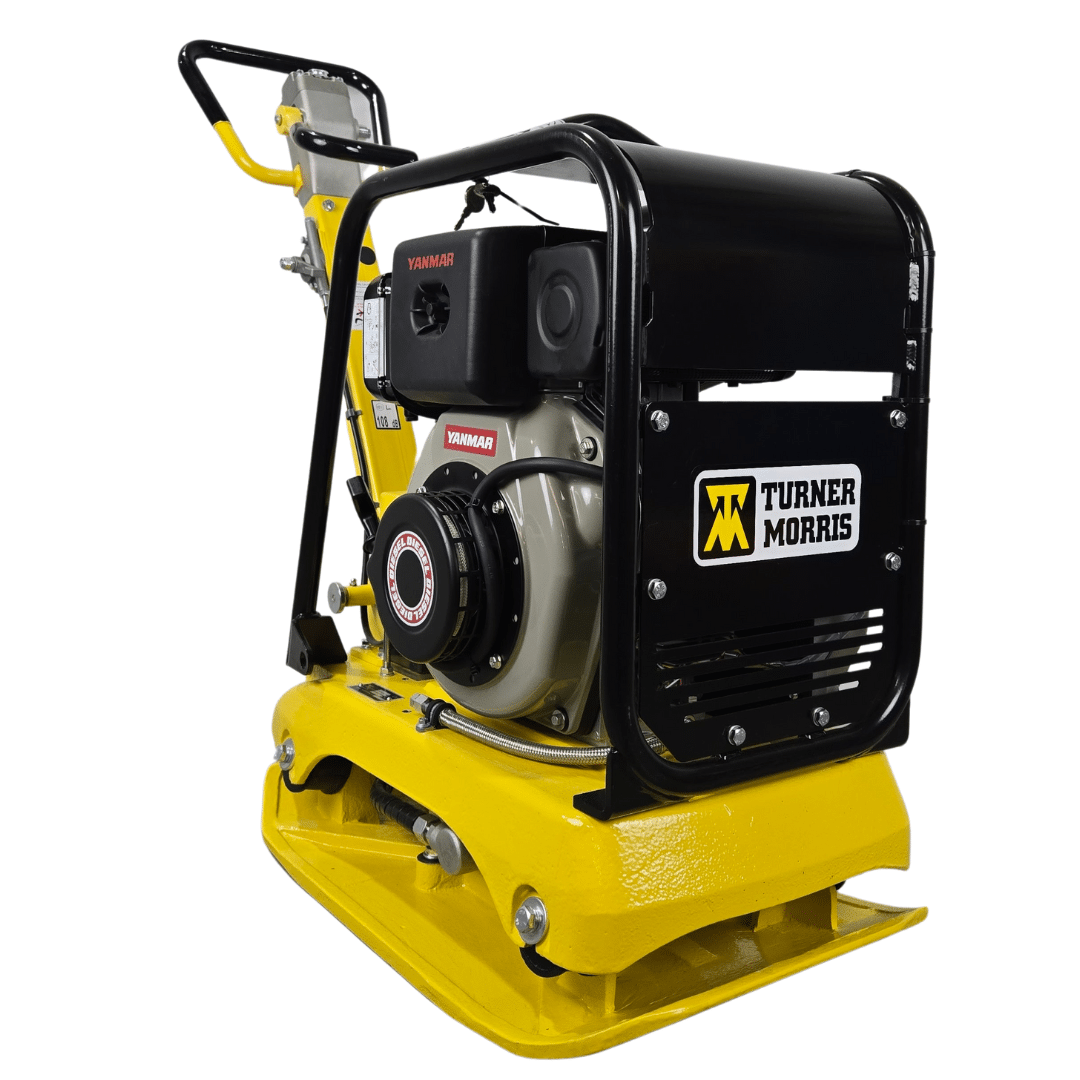

TMCPC160D Diesel Reversible Plate Compactor – Diesel-Powered Compaction with Easy Control

The TMCPC160D Diesel Reversible Plate Compactor is a powerful, midsize compactor that offers exceptional compaction performance and easy maneuverability. Powered by a diesel engine, this machine is the ideal solution for small area and patching conditions, delivering efficient, long-lasting results. This compactor features a hydraulic direction mechanism that allows it to move forward, backward, and compact on the spot, giving operators complete control during use. The throttle lever is made from durable cast aluminum, ensuring comfort and reliability for the operator. Additionally, the closed-style frame protects the diesel engine and includes a hidden hook for added convenience. Designed for ease of transport, the folded handle reduces space requirements. The cast aluminum belt cover enhances cooling, extending the lifespan of both the engine and clutch by keeping sand, soil, and dust out of the machine.

With its high-quality shock absorber, the TMCPC160D efficiently absorbs vibrations, improving operator comfort during extended use. Optional wheels make transportation easy, while the ductile iron base ensures durability and strength for demanding jobs. Additionally, this compactor can be fitted with a rubber mat, making it suitable for brick compaction as well. Experience the superior control and power of the TMCPC160D Diesel Reversible Plate Compactor, designed for tough small-area and patching applications.

Specifications:

Engine Type: Yanmar L70N (Diesel)

Max. Power Output: 5.45 kW (7.5 ps)

Weight: 180 kg

Dimensions (L x W x H): 1130 x 430 x 920 mm

Plate Size (L x W): 700 x 430 mm

Vibration Frequency: 90 Hz (5400 vpm)

Centrifugal Force: 27 kN (2750 kgf)

Max. Traveling Speed (Depending on materials): 25 m/min

Limited Gradient: 30%

The TMCPC160D Diesel Reversible Plate Compactor combines the power of a diesel engine with ease of use, making it the go-to solution for small area compaction and patching jobs.
