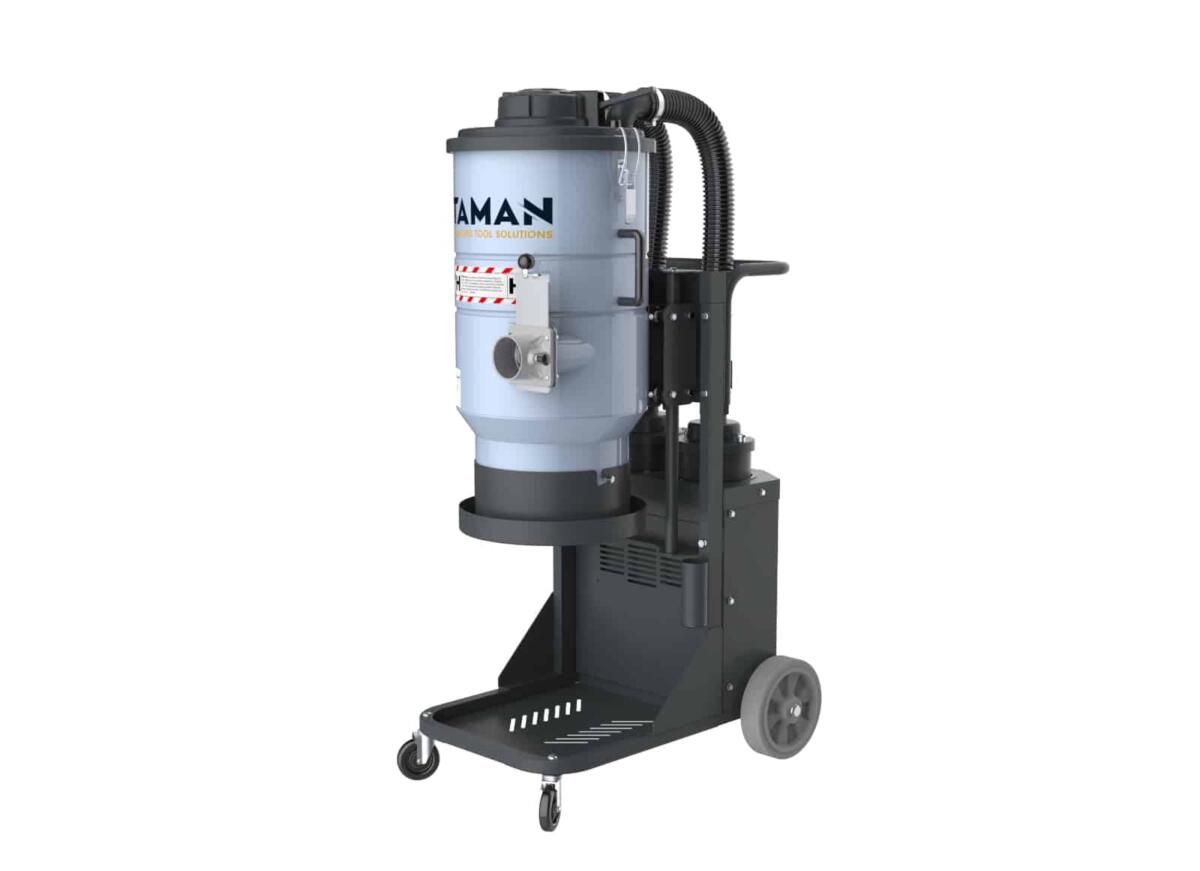

TDE2 Single Phase 2 Motor Hepa Dust Extractor

TDE-2 is a two engine HEPA dust extractor .It is equipped with a main filter and two H13 filters. Each HEPA filter is individually tested and
certified to have a minimum efficiency of 99.99% at 0.3 microns. which meets the new silica requirements. This professional dust extractor is excellent for building, grinding, plaster and concrete dust.

Main features:
1. OSHA compliant H13 HEPA filter tested and certified with EN1822-1 and IEST RP CC001.6.
2. Unique jet pulse filter cleaning system, efficiently purges the pre-filter without opening the vacuum to maintain a smooth airflow,
and to avoid creating a dust hazard.
3. Both continuous bagging system for effective dust storage and a regular plastic bag system are compatible.
4. The height of the vacuum can be lowered to 103cm,5.
An hour counter and vacuum meter for filter control are standard.

Specifications:

Power (kw) 2.4kw
Voltage 240V 50/60Hz
Amps 9.6
Airflow (m ‘ /h) 400
Vacuum (mBar) 240
Pre-filter 3.0m 2 >99.5%@1.0um
Hepa filter (H13) 2.4m 2 >99.99%@0.3um
Dimension (mm) 570x710x1300
N.W./G.W. (kg) 64.5/82
Packing dimension (mm) 620X750X1480
