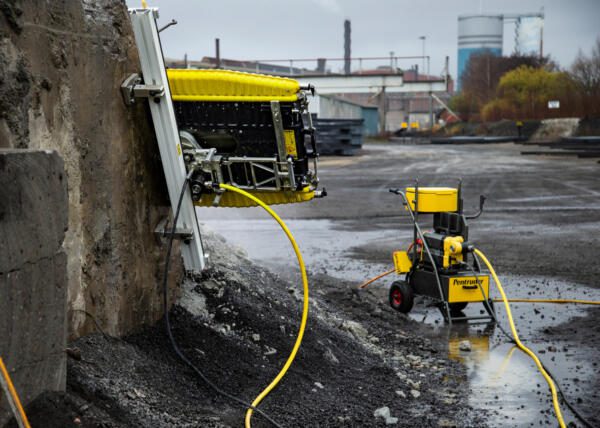

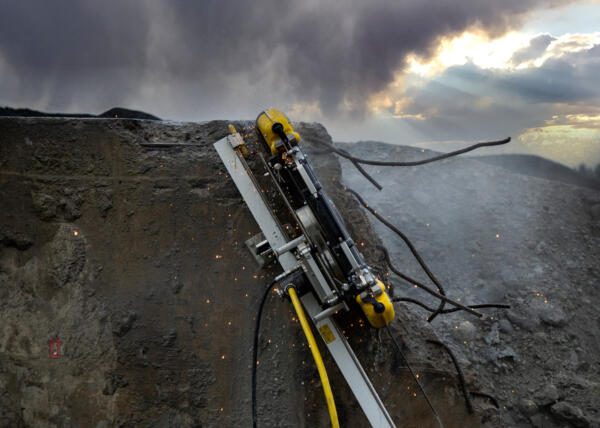

Pentruder RS2 High Frequency Wall Saw

The Pentruder wall saws are easy to handle and operate and offer a very good power to weight ratio.

RS2 wall saw weighs under 24.5 kg including its integrated motors. Max output power of 18 kW. Easy fitting of blade with quick connect coupling. Built for low maintenance with the customer in mind.

Key Features:

Saw blade ⌀ max – 1600 mm(63″)
Max output power – 18KW
Cutting depth max -715 mm (30.0″)
Max output torque -148 Nm

Technical Strengths:

Integrated saw motor:
Advanced saw head water-cooled motor, fully integrated into the saw head. Very powerful relative to the weight of the motor.

Sturdy and reliable radio remote control:
Designed with the operator in mind for simplicity, reliability and tough conditions.

Robust and light weight:
Strong steel tube and sheet metal frame, high strength plastic parts for best possible protection

RS2 Trolley:
Easy transportation of standard saw package including 800 mm blade with the RS2 trolley.

Motor protected from overload:
Slip clutch integrated in motor rotor shaft. Electronic slip detection to protect from overload.

Only one connector and cable:
One single 21 mm diameter cable controls all the machine functions. Easy maintenance of connector parts with standard hand tools.

Quick disconnect blade flange coupling
Quick disconnect blade flange coupling for radial mounting of the saw blade. The saw blade can be fitted to the saw head even after the machine has been mounted, also for flush cutting.
