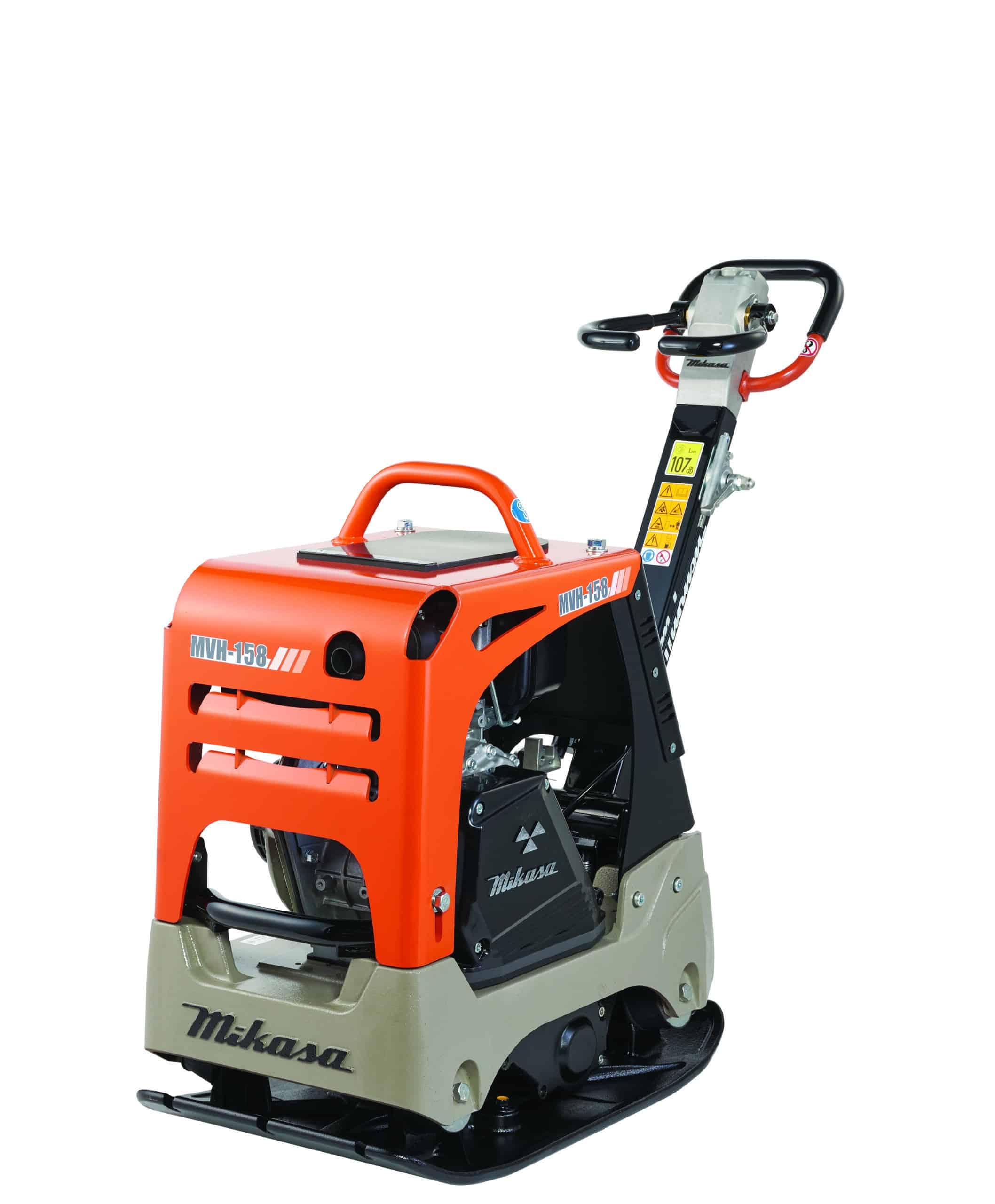

Mikasa Reversible Plate Compactor MVH-158DY

Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils in trenches and large construction projects. They offer high-compaction capacity, superior travel speeds and feature fully hydraulic direction control for easy direction change. They are ideally suited for civil construction works, drainage contractors and the rental industry.

– Yanmar L48 diesel engine provides hassle free operation, low fuel consumption and long-term reliability
– Engine hour meter and tachometer for efficient management of service intervals and monitoring of engine rpm for optimum compaction performance
– Central lifting hook for safe onsite handling
– Forward/reverse control lever with built-in actuator for seamless and smooth transition between both forward and reverse motions
– Cyclonic air filtration system for superior air filtration lengthen service intervals and improve engine protection
– Anti-vibration handle for reduced hand and arm vibration transfer to the operator
– Height adjustable handle for improved operator comfort
– Sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch components and V-belt
– Robust full engine protection frame provides superior protection against engine damage and its hinge design simplifies maintenance and offers convenient access to all serviceable components

Specifications:
– Model: MVH-158DY
– Engine and power: Yanmar L48 4.7 hp
– Fuel type: Diesel
– Operating weight: 164 kg
– Plate size (wxl): 430 mm x 700 mm
– Centrifugal force (max): 25 kN
– Vibration frequency: 5400 vpm
– Max travel speed*: 26 m/min
– Max gradeability: 35%
– Max compacted area: 670 m2/h

* Travel speeds vary based on different soil conditions. Specifications published are based on average performance results.
