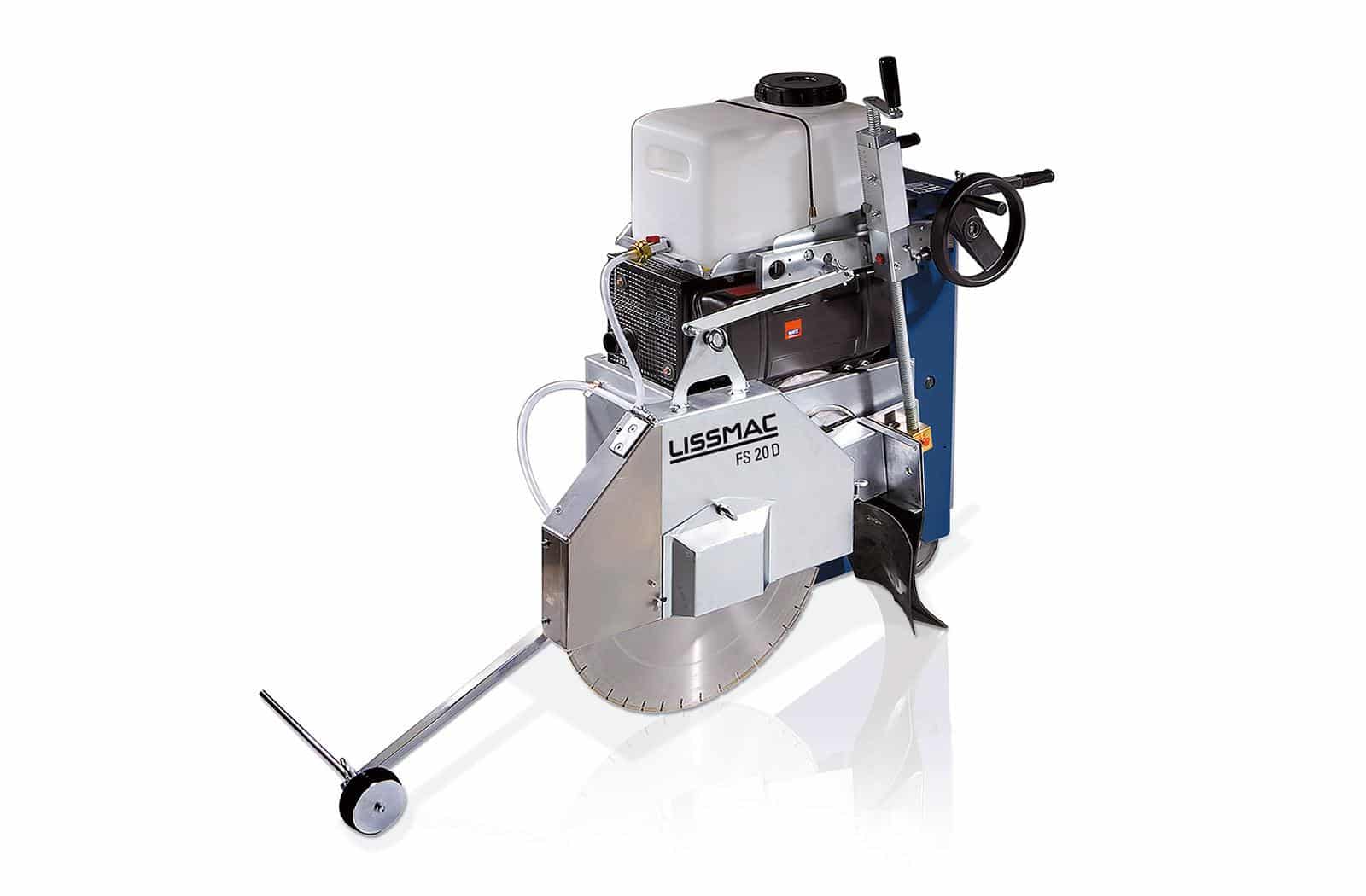

Lissmac Low Emission Diesel Floor saw FS 20 D/VE with 600mm Blade Guard

Compact in size and as rugged as a big saw – the extremely powerful diesel floor saw FS 20 D performs above its weight class with impressive technology. The FS 20 D VE version is equipped with an electric feed instead of the hand crank feed, which makes the floor saw ideally suited for heavy cutting work in concrete and asphalt. Driven by an extremely reliable Hatz Stage V diesel engine with 10.1 kW / 13.7 PS, the floor saw achieves cutting depths of up to 220 mm (optionally 270 mm). The saw blade diameter is 600 mm (optionally 700 mm).

The powerful and compact diesel floor cutter is designed for the efficient creation of kerfs, expansion joints and contact loops as well as for repair work. The agile machine proves its special talents when cutting joints on narrow pavements and on cramped construction sites. The diesel floor saw is equally suitable for demanding applications in asphalt and concrete and proves its strengths in road construction and civil engineering as well as in landscaping and is a reliable machine for tool rental applications. The hand crank feed of the diesel joint cutter enables an even, straight cut and guarantees longer saw blade service lives and thus lower cutting costs. With the version FS 20 D VE with electric feed, even particularly difficult work can be carried out without tiring the operator. The saw blade is lowered and raised smoothly. This prevents damage to the cutting tool. The front of the saw hood can be folded up for overcuts. The rear wheel sits outside of the saw cut, so re-cutting kerfs can be carried out without any problems. Also extremely practical: the saw arm, which can be swivelled by 180 °, eliminates the tedious changeover between left and right cuts.

Compact and clever – this diesel floor saw contains the concentrated know-how and practical experience of LISSMAC. Let yourself be inspired by the possibilities of the FS 20 D (-VE):

Specifications:

Cutting Depth Standard / Optional: 220 mm / 270 mm
Cutting Depth Setting: Stepless threaded spindle with depth gauge
Saw Blade Diameter Standard / Optional: 600 mm / 700 mm
Arbor Size: 25.4 mm
Drive Motor: HATZ Diesel
Output Power Max.: 10.1 kW / 13.7 hp
Emission Level: Stage 5
Feed Standard: Hand crank
Feed FS 20-VE: Electric / Hand crank
Saw Blade Speed: 1920 1/min
Left/Right Cut: Yes
Dimensions (L/W/H): 1100 / 750 / 1100 mm
Weight: 263 kg
Weight VE: 268 k
